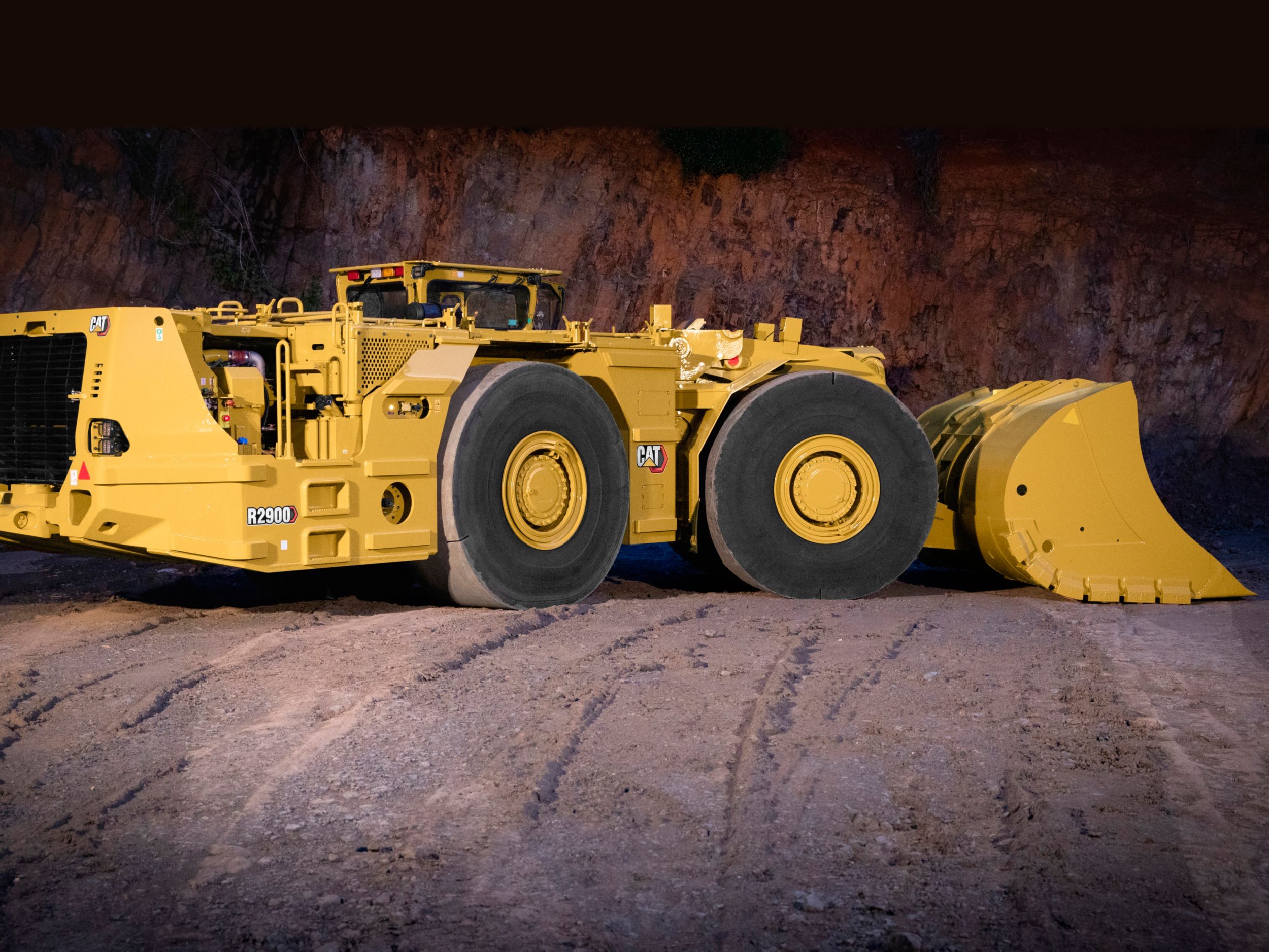

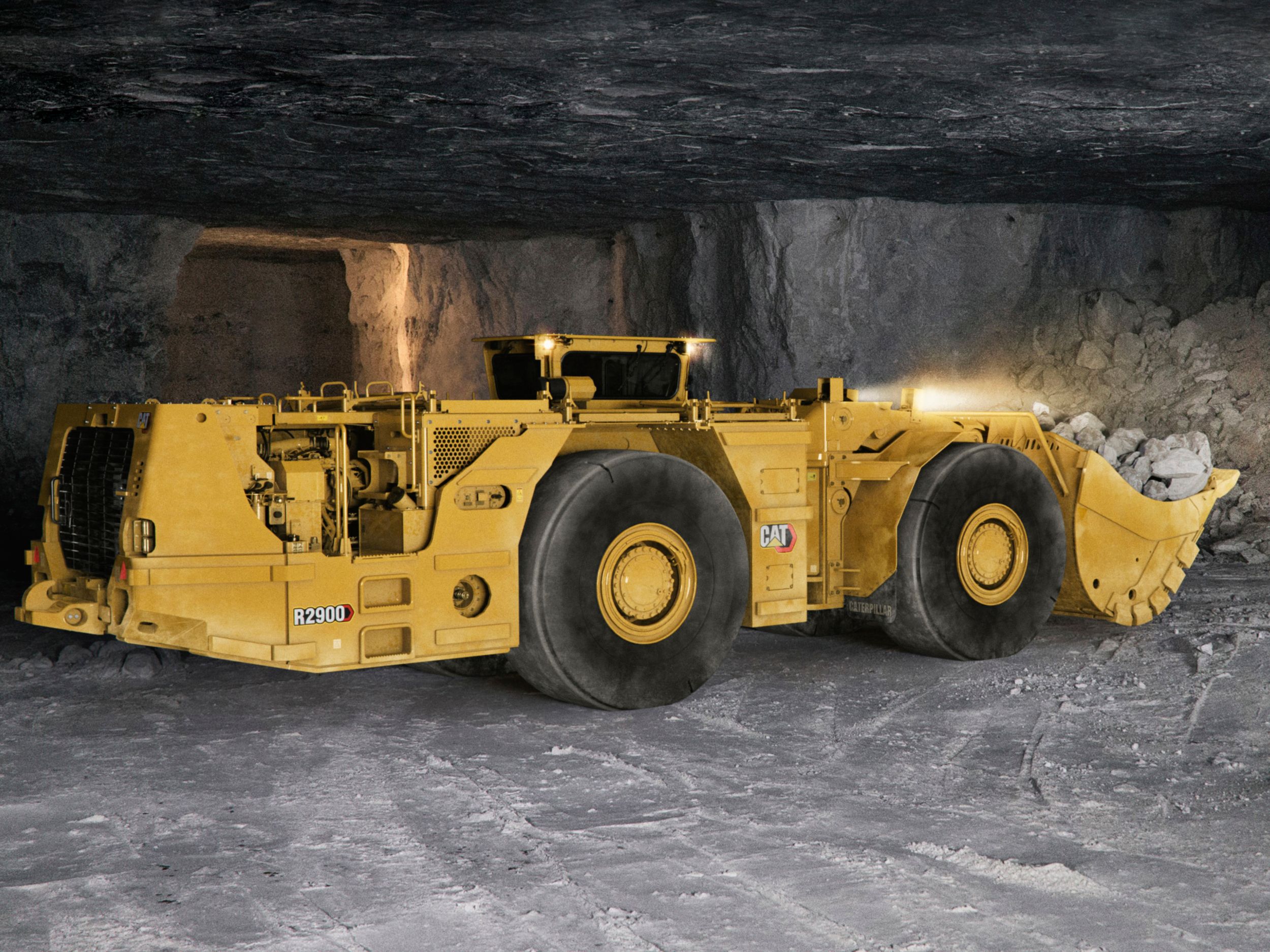

R2900 Underground LHD Loader

Request a Quote
Download a Product Brochure

Product Specs

Engine

Engine Model
Cat® C15
Engine Power - Stage V Engine - ISO 14396:2002
393 HP
Engine Power - Tier 3 Engine - ISO 14396:2002
401 HP
Engine Power - VR Engine - ISO 14396:2002
401 HP
Bore
5.4 in
Stroke
6.8 in
Displacement
927.6 in³
Note (1)
Power ratings apply at a rated speed of 1,800 rpm for VR and Tier 3 equivalent model when tested under the reference conditions for the specified standard.
Note (2)
Power ratings apply at a rated speed of 2,000 rpm for Stage V model engine when tested under the reference conditions for the specified standard.
Note (3)
All rating conditions are based on ISO/TR14396, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications i
Note (4)
Minimal engine derating* required up to 2926 m (9600 ft) at rated speed for Stage V engines, 3048 m (10,000 ft) altitude for Tier 3/Stage IIIA equivalent engines, and 3505 m (11,500 ft) for Tier 2/Stage II equivalent VR engines. (*<5%)
Note (5)
Optional Ventilation Reduction Package available.
Note (6)
Optional engine with emissions equivalent to Tier 3 and Stage IIIA is also available.
Note (7)
Optional engine available that meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Operating Specifications

Nominal Payload Capacity
37920 lb
Gross Machine Mass
162736 lb
Shipping Mass
125203 lb
Static Tipping Load - Straight Ahead - Lift Arms Horizontal
94106 lb
Static Tipping Load - Full Turn - Lift Arms Horizontal
80686 lb
Breakout Force - Lift (ISO)
50062 lb
Breakout Force - Tilt (ISO)
60298 lb

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit
Open Centre, Pilot Control
Lift/Tilt System - Pump
Fixed Displacement Gear Pump
Maximum Flow at 2,120 rpm
116.2 gal/min
Relief Valve Setting - Main
3408 psi
Lift Cylinder - Bore
9.1 in
Lift Cylinder - Stroke
29.4 in
Tilt Cylinder - Bore
10.5 in
Tilt Cylinder - Stroke
21.5 in

Weights

Operating Mass*
114837 lb
Operating Mass* - Front Axle
50623 lb
Operating Mass* - Rear Axle
64214 lb
Operating Mass + Rated Payload*
152756 lb
Operating Mass + Rated Payload* - Front Axle
109949 lb
Operating Mass + Rated Payload* - Rear Axle
42807 lb
Note
*Calculated Weight.

Bucket Capacities

Bucket Capacities
6.3-8.9 m³ (8.2-11.6 yd³)
Dump Bucket - 1
8.2 yd³
Dump Bucket - 2 - Standard Bucket
9.4 yd³
Dump Bucket - 3
10.9 yd³
Dump Bucket - 4
11.6 yd³

Turning Dimensions

Outside Clearance Radius**
288.3 in
Inner Clearance Radius**
133.9 in
Axle Oscillation
8°
Articulation Angle
42.5°
Note
**Clearance dimensions are for reference only.

Tires

Tire Size
29.5 R29

Service Refill Capacities

Engine Crankcase
9 gal (US)
Transmission
16.4 gal (US)
Hydraulic Tank
37 gal (US)
Cooling System
19.8 gal (US)
Front Differential and Final Drives
31.4 gal (US)
Rear Differential and Final Drives
33.5 gal (US)
Front Differential and Final Drives - With Axle Oil Cooling System
42 gal (US)
Rear Differential and Final Drives - With Axle Oil Cooling System
44.1 gal (US)
Fuel Tank
166 gal (US)
DEF Tank
8.5 gal (US)

Standards

Standards
ROPS/FOPS Certified Cab

Hydraulic Cycle Times

Raise
9.2 s
Dump
3.4 s
Lower, Empty, Float Down
3.1 s
Total Cycle Time
15.7 s

Transmission

Forward - 1
3.2 mile/h
Forward - 2
6 mile/h
Forward - 3
10.7 mile/h
Forward - 4
18.9 mile/h
Reverse - 1
4.1 mile/h
Reverse - 2
7.5 mile/h
Reverse - 3
13.4 mile/h
Reverse - 4
20.4 mile/h

Standard Equipment

  • Electrical
    • 12V Power Supply in Cab
    • Alternator, 150-amp
    • Auxiliary Start Receptacle
    • Battery Disconnect Switch, Ground Level
    • Circuit Breaker, 80-amp
    • Corrosive Protection Spray
    • Diagnostic Connector
    • Electric Starting, 24-volt
    • Engine Shutdown Switches
      – Rear Right Hand Side
      – Rear Left Hand Side
    • External LED Lighting System, Front, Rear, Stop light, dual
    • Low Maintenance Batteries
    • Reversing Alarm
    • Starting and Charging System
  • Operator Environment
    • Cat Electronic Monitoring System (Cat EMS)
    • Electric Horns
    • Gauges
      – Engine Coolant Temperature
      – Transmission Coolant Temperature
      – Hydraulic Oil Temperature
      – Fuel Level
      – Speedometer
      – Tachometer
    • Indicator Lights
      – Alert Warning Light
      – Residual Brake Pressure
    • Low Hydraulic Level Warning
    • Open Operator Station ROPS/FOPS Structure
    • Operator Presence System (Auto Park Brake)
    • Pilot Hydraulic Implement Controls, Single Joystick
    • Push Button Panel for Lights
    • Suspension Seat with Retractable Seat Belt
    • STIC Steering
  • Power Train
    • Cat C15 ATAAC Diesel Engine, 6-Cylinder
    • Brake Axle Cooling
    • Electric Fuel Priming Pump
    • Engine Air Intake Precleaner
    • Engine Oil Filter, Remote Mounted
    • Heat Shields
    • Long Life Coolant
    • Planetary Powershift Transmission with Automatic Shift Control, 4 Speed Forward/4 Speed Reverse
    • Radiator, Cross Flow
    • Radiator Cap Manual Release
    • Rims, 5-Piece, Tubeless
    • SAFR™ Full Hydraulic Enclosed Wet Multiple-Disc Brakes
    • Torque Converter with Automatic Lockup Clutch
    • Transmission Neutralizer
    • Transmission Filter Drain Tap
  • Other Standard Equipment
    • Brake Light
    • Bucket, Dump
    • Bucket Lip, Hardox 450 Bucket
    • Bucket Positioner, Return To Dig
    • Catalytic Exhaust Purifier/Muffler Group
    • Decals, International Picto Graphics
    • Fuel System
      – Single Fuel Tank, Bolt-In
      – Fuel System Manual Shut Off Taps
    • Engine and Transmission Belly Guards
    • Fenders, Front, Rear
    • Firewall
    • Handrails
      – Hand Hold (Acces On/Off Top Deck)
      – Fold Down
    • Operation and Maintenance Manual – English and other applicable local languages to select
    • Protection Wear Bars 100 × 50 mm (4 × 2 in)
    • Semi Centralized Lubrication Points
    • Rim, 5-Piece, Tubeless
    • S·O·S port
      – Coolant
      – Engine Oil
      – Hydraulic Oil
      – Transmission Oil
    • Swing Out Radiator Grill
    • Tires and Rims: A tire must be selected from the mandatory attachments section of the machine price list. Base machine price includes a standard tubeless rim allowance only.

Attachments

  • Optional Equipment
    • Battery and Engine Shutdown Switches
      – Ground Level Isolation, In Cab Isolation Switch
      – Ground Level Isolation, Engine Shutdown Switch
      – Ground Level Isolation, In Cab Isolation, Engine Shutdown Switch
    • Brake Pressure Gauges
    • Brake Release Arrangements
      – Recovery Hook
      – Recovery Bar
    • Buckets
      – Various Sizes, Dump (6.3m³/8.2yd³ to 8.9 m³/11.6 yd³)
      – Bucket, Light Weight Material (10.5 m³/13.7 yd³ to 11.6 m³/15.2 yd³)
      – Bucket Spill Guard
    • Bucket Hardware
      – Cutting Edge, Cat Weld On
      – Cutting Edge, Half Arrow, Flat
      – Cutting Edge, Bolt-On
      – Heel Shrouds
      – Mechanical Attached Shroud (MAS)
      – Mechanically Attached Wear Plate System, Cutting Edge Protection (MAWPS)
      – Mechanically Attached Wear Plate System, Bottom Protection (MAWPS)
      – Protector Pads (Bottom of Bucket)
      – Wear Bars
      – Wear Liner
    • Bucket Lip
      – Lip Fully Welded or Tack Welded
      – Lip Bare (No Hardware)
    • Bolt-On Lip
      – MAS Ready (Mechanically Attached Shrouds)
    • Camera, Color Rear Facing
    • Cover, Anti Vandalism for Shipping
    • Draw Bar Attachment, Bolt-On
    • Engine Options
      – Engine, Ventilation Reduction (VR)
      – Engine, Equivalent to Tier 3
      – Engine, EU Stage V
      – After-treatment options (for use with VR Engine only)
      • DPF (Flow Through)
      • DPF (Wall Flow)
    • Lighting
      – Loading
    • Fast Fill System
      – Fuel
      – Coolant
      – Engine Oil
      – Hydraulic Oil
      – Transmission Oil
    • Fire Suppression System
      – Ansul, Wet for Stage V
      – Ansul, Wet for VR and Tier 3 equivalent
    • Fluids
      – Arctic Coolant
      – Arctic Fuel
    • Front Light Protectors
    • Fuel System
      – Fuel Lines Double Braided (Stainless Sleeving)
      – Fuel Lines Standard Braided (Double Braid Hydraulic Hose)
    • Guard, Rear Side Quarter Window
    • Hydraulic System
      – Alternate Implement/Pilot Control Configuration
    • Lubrication System
      – Automatic
      – Centralized
    • Operator’s Station, Enclosed ROPS/FOPS
      – Air Conditioning
      – Cab Pressurizer and Filter
      – Dome Light
      – Heater
      – Radio Ready Compartment for Radio and Speakers
    • Park Brake Switch Engagement
      – Push to Apply
      – Pull to Apply
    • Payload Control System
      – Loadrite L2180
    • Remote Control Interface (excludes Transmitter and Receiver)
      – RCT
    • Radiator
      – Standard
      – High Efficiency
    • Reversible Steering
    • Reflective Tape
    • Ride Control System
    • Rim
      – Rim Identification Numbering
      – Spare (Tubeless)
    • Seats
      – Seat Covers, Tee, Air and Standard
      – Suspension Seat Tee, Vinyl
      – Suspension Seat Air, Vinyl
    • Secondary Steering System
    • Service Tools
      – Collet Jacking Bolts
      – Recovery Bar (for use with Brake Release, Recovery Bar System)
    • Switches
      – Engine Shutdown, Fire Suppression Activation
      – Idle Timer
      – Engine Shutdown/Idle Timer
    • Technology
      – Command for Underground
      – Wifi (Product Link™ Elite)
    • Tire Arrangements
      – Tire, 29.5 × R29 VSM L-5S Bridgestone
      – Tire, 29.5 × R29 VSDL L-5 Bridgestone
    • Wear Protection Bars
      – Cab/ROPS
      – Hydraulic Tank
      – Radiator
    • Windows
      – Single Pane
      – Dual Pane
    • NOTE: Not all features are available in all regions. See your Cat dealer for more information.
