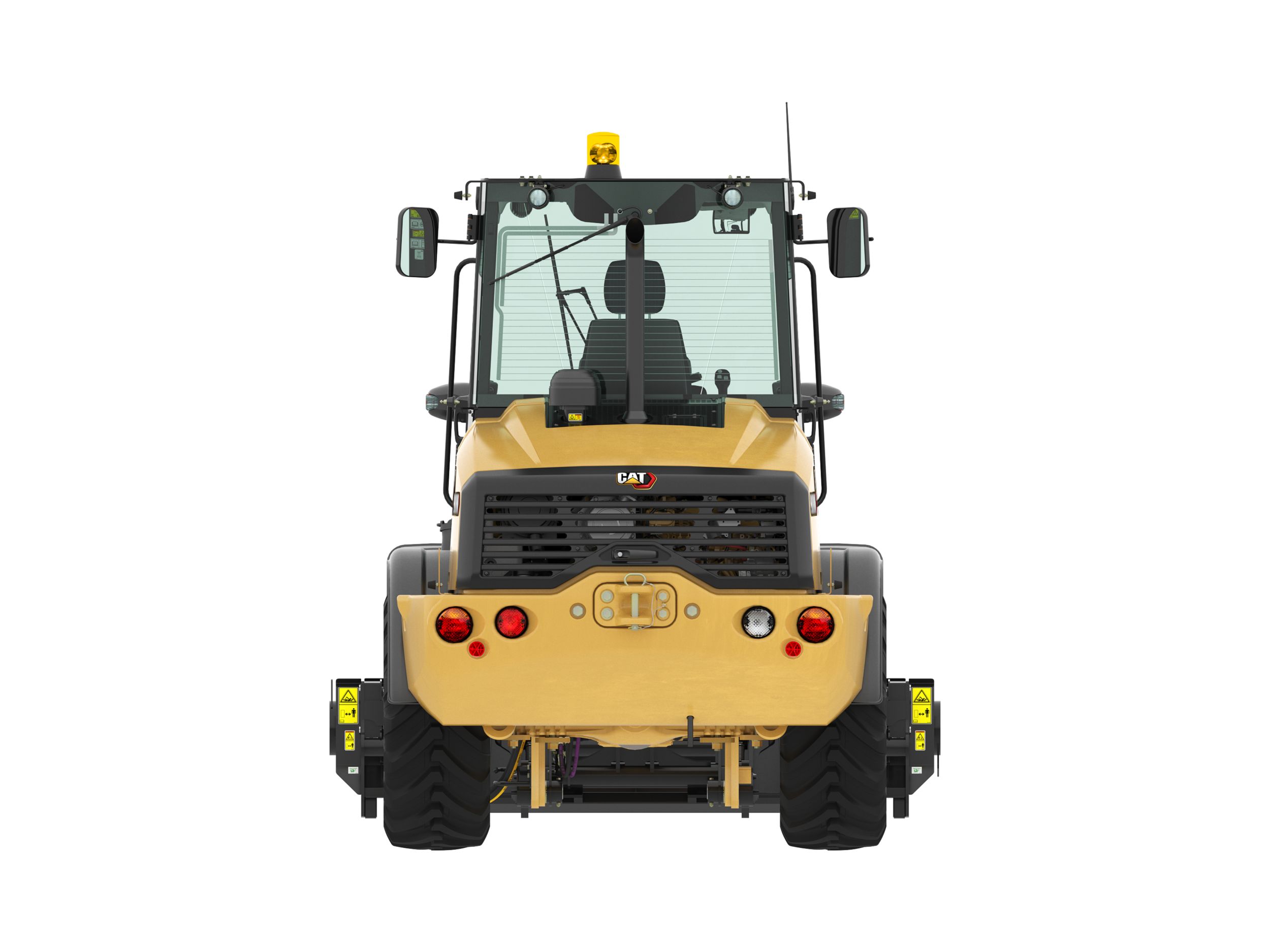

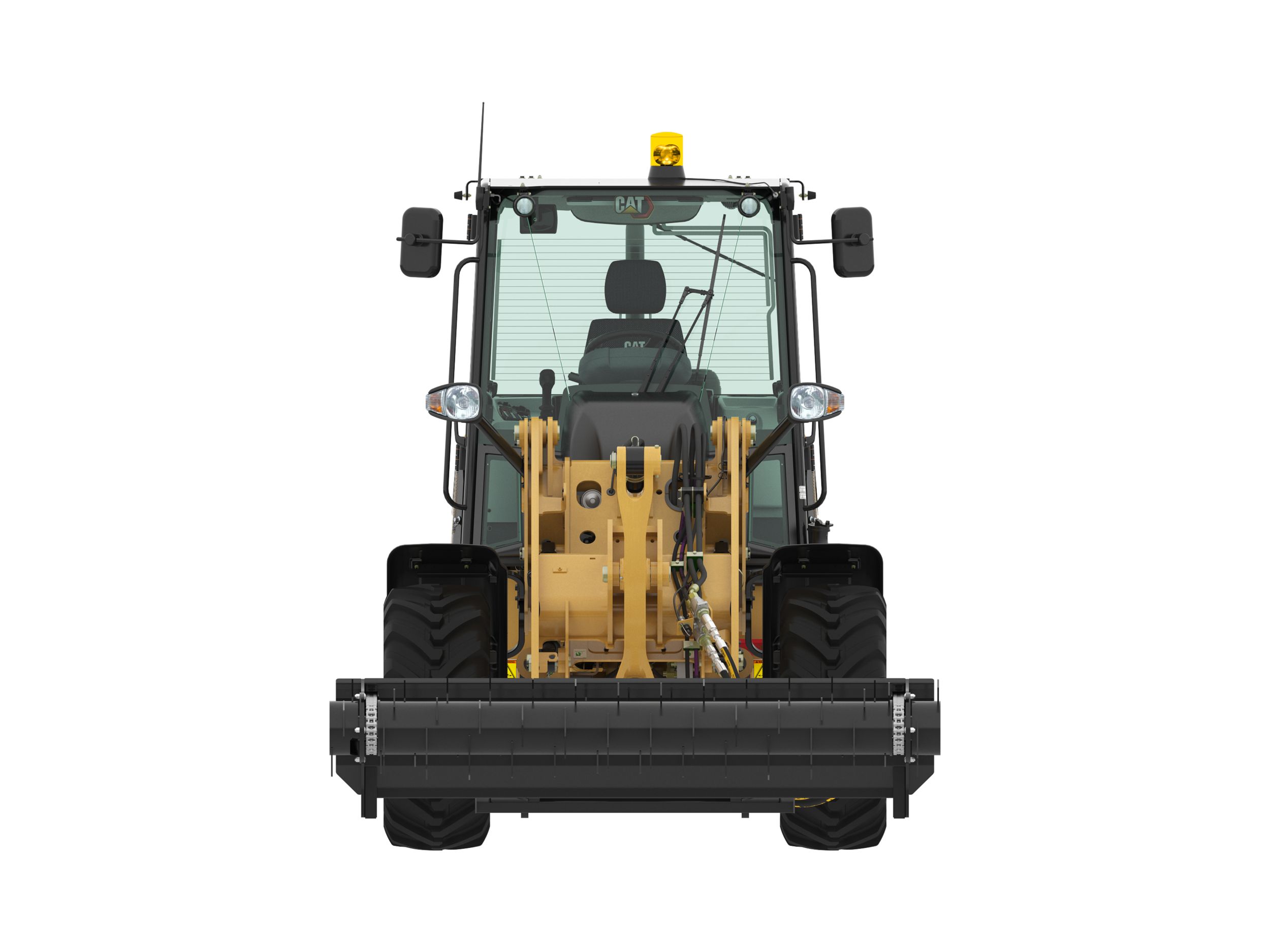

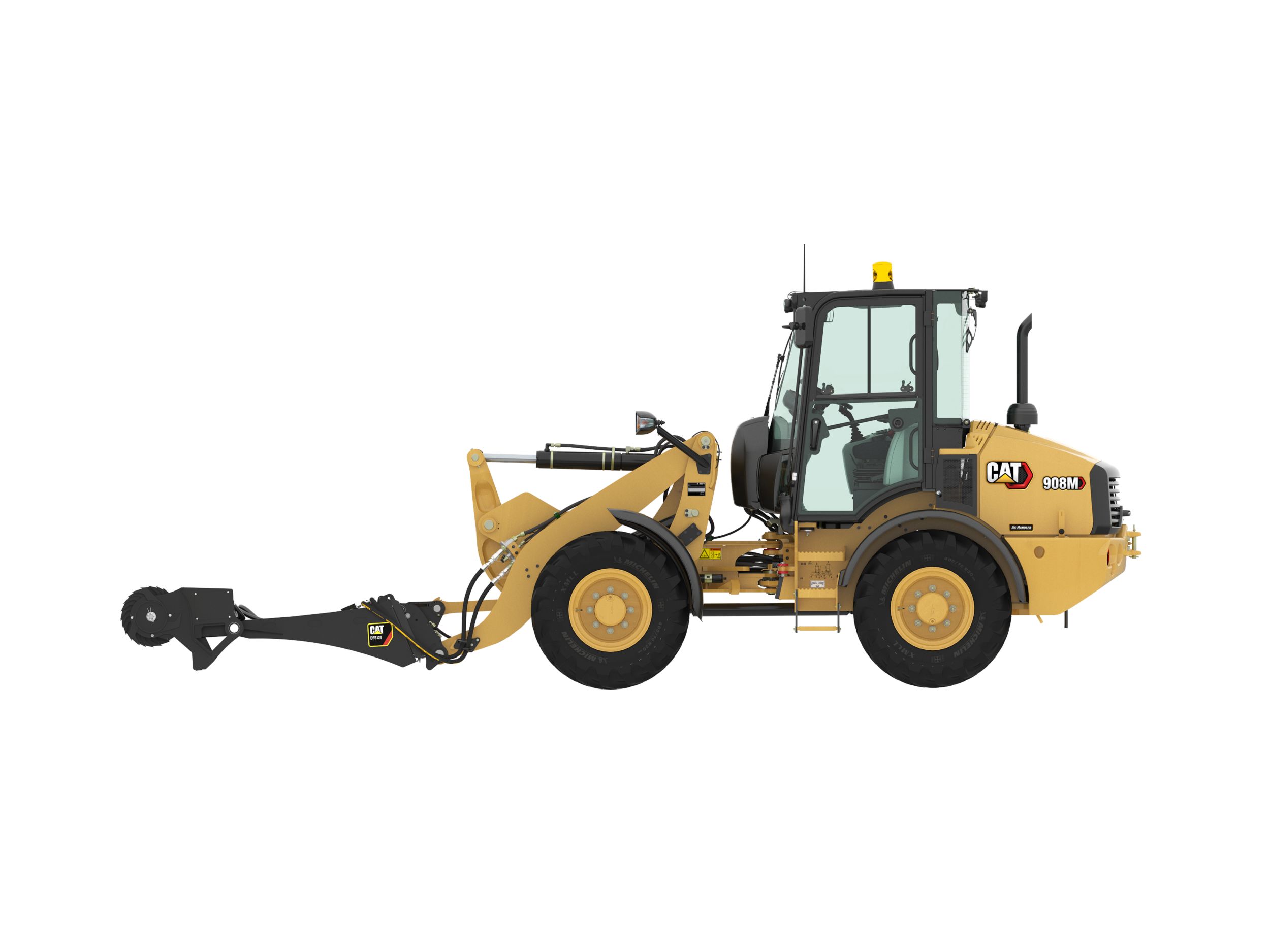

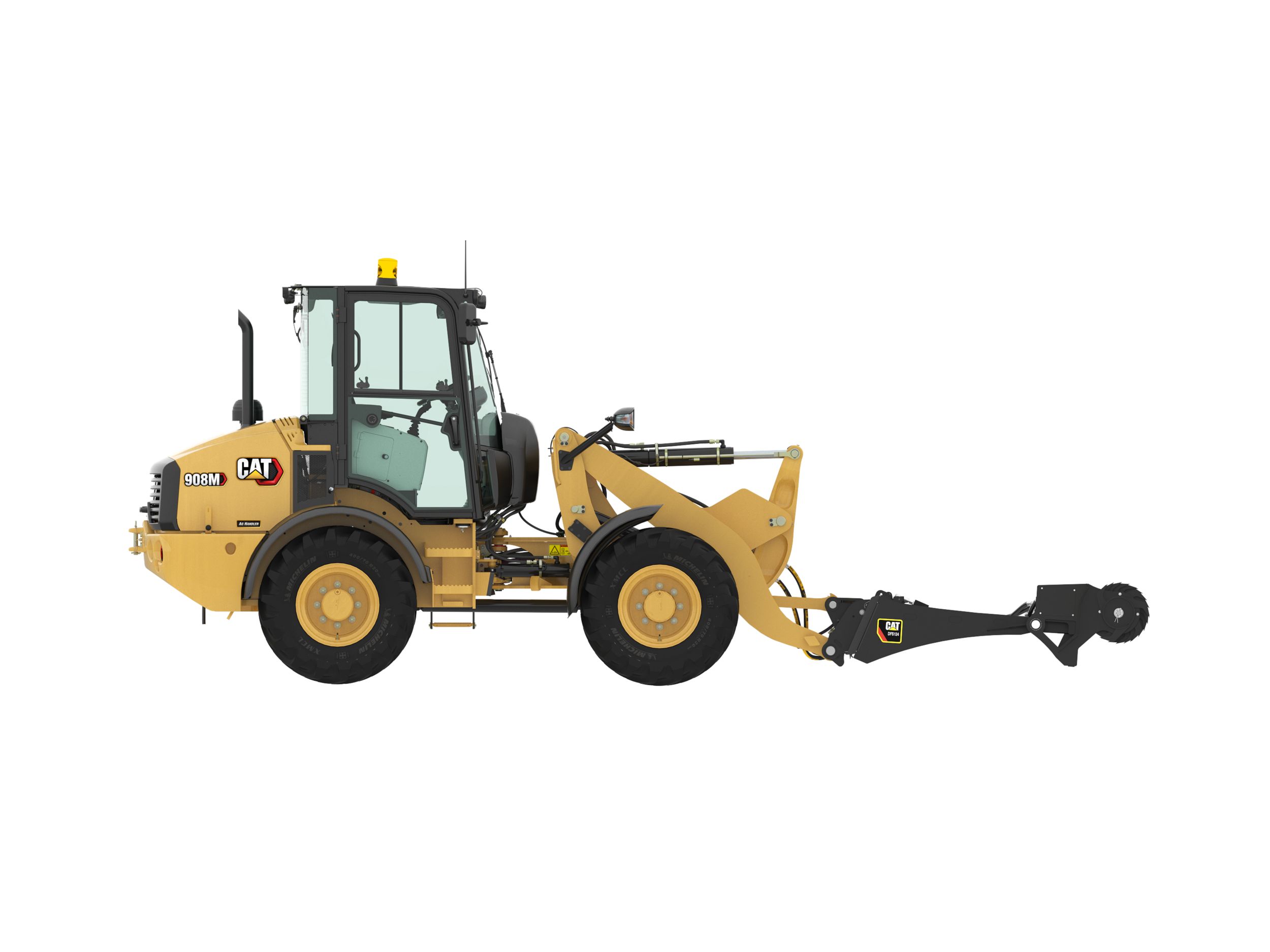

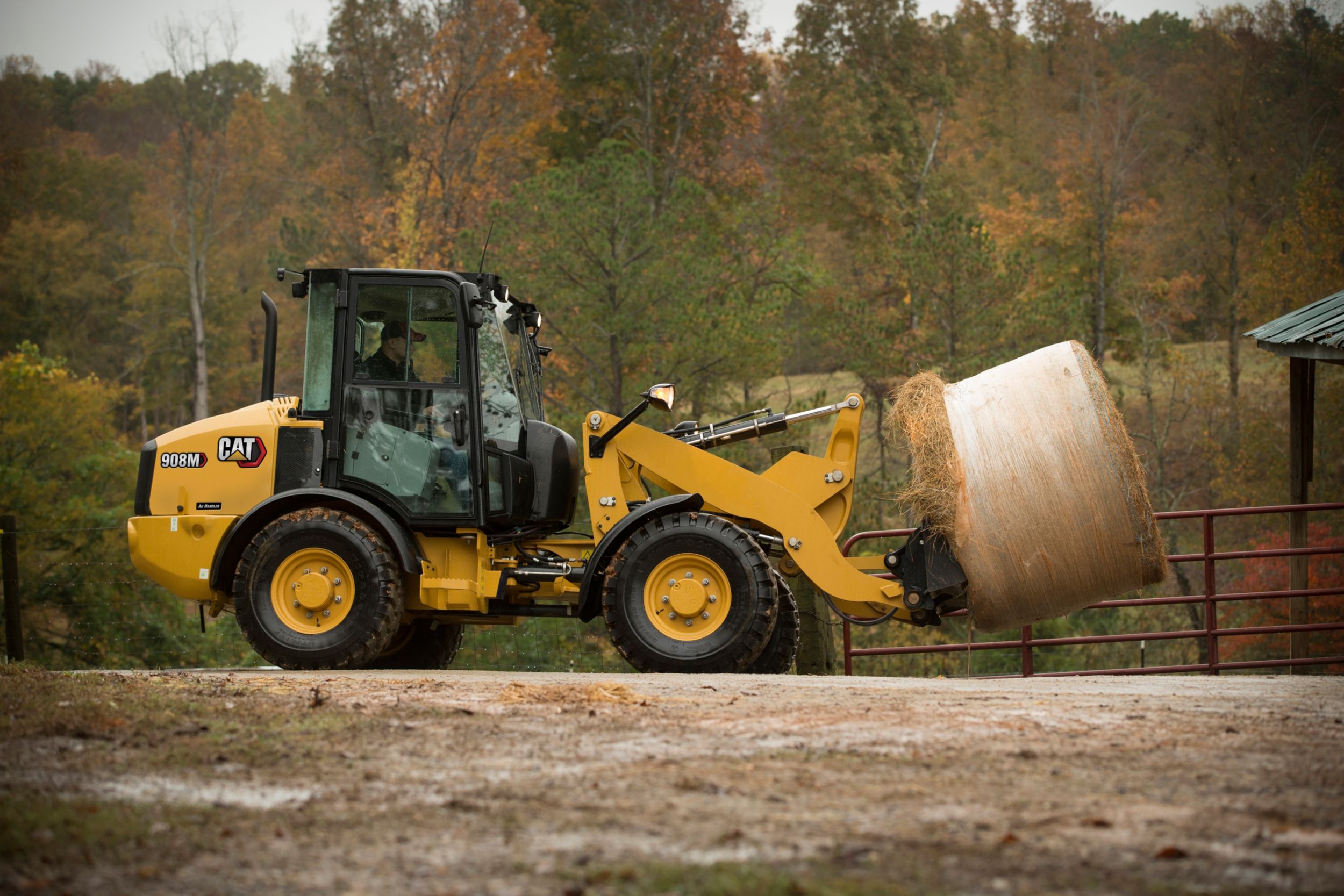

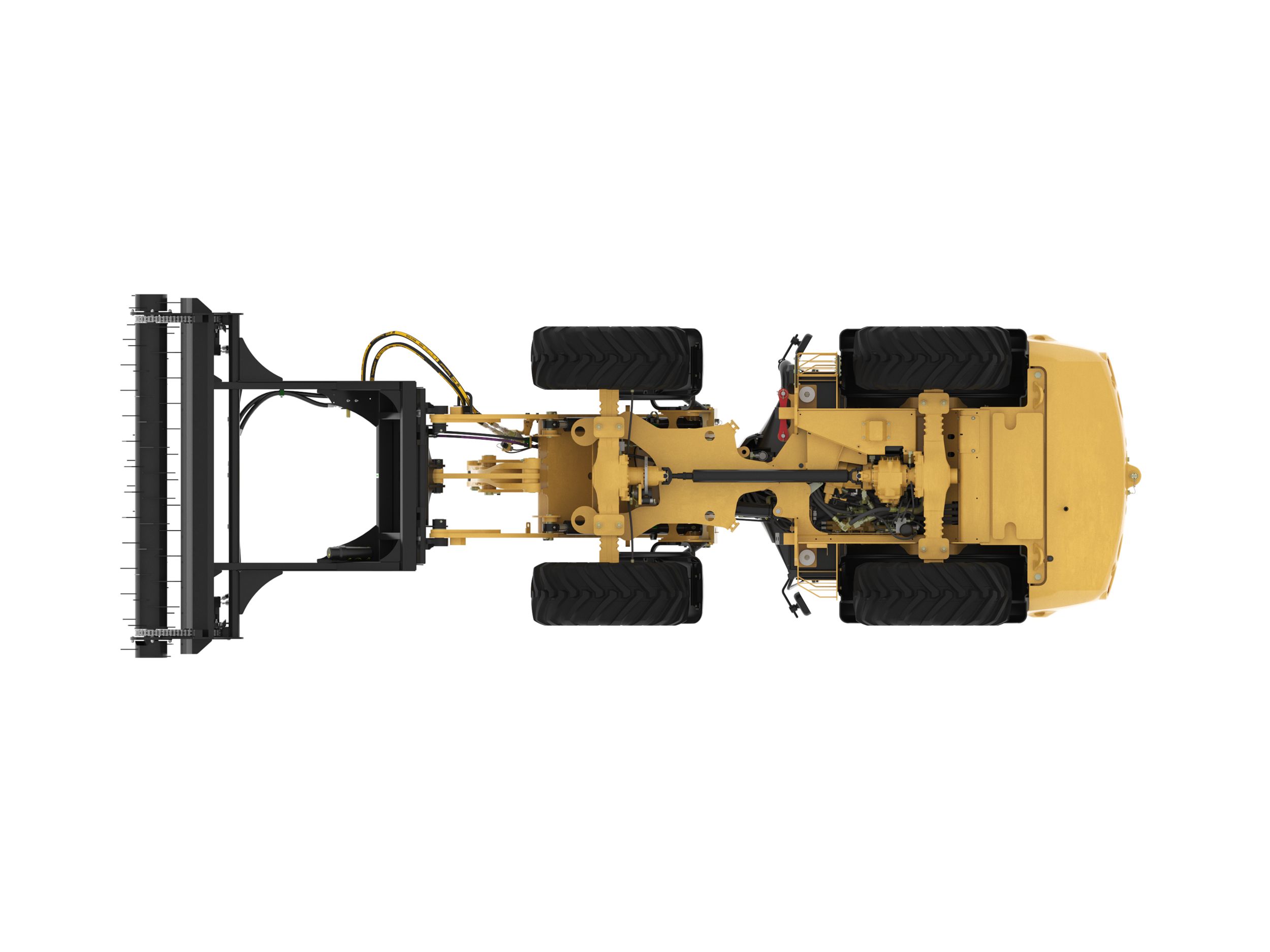

908M Ag Handler – Agricultural Arrangement

Request a Quote
Download a Product Brochure

Product Specs

Engine

Maximum Gross Power
73.2 HP
Engine Model
Cat® C3.3B DIT*
Maximum Gross Power - ISO 14396
73.2 HP
Maximum Gross Power - ISO 14396 (metric)
74.2 mhp
Rated Net Power - 2,400 rpm - SAE J1349
71.9 HP
Rated Net Power - 2,400 rpm - ISO 9249
72.9 HP
Emissions
*The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.

Weights

Operating Weight
14402 lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).

Buckets

Bucket Capacities
0.9-1.5 m³ (1.2-2.0 yd³)
Bucket Capacities - ISO Coupler
0.9-1.5 m³
Bucket Capacities - SSL Style Coupler
1.2-2.0 yd³

Service Refill Capacities

Cooling System
4.5 gal (US)
Fuel Tank
20.6 gal (US)
Hydraulic System
18.5 gal (US)
Engine Oil
3 gal (US)

Travel Speeds

Speed 1
6.2 mile/h
Speed 2
12.4 mile/h
High Speed
21.7 mile/h

Hydraulic System

Main Relief - 3rd Aux Flow
3400 psi
Main Relief - 3rd Aux Flow: Standard
22 gal/min
Main Relief - 3rd Aux Flow: High Flow
34 gal/min
Hydraulic Cycle Time - Lower
3.2 seconds
Hydraulic Cycle Time - Rackback
2.1 seconds

Loader Hydraulic System

Hydraulic Cycle Time - Lift
5.2 seconds
Hydraulic Cycle Time - Dump
1.3 seconds

Dimensions - With ISO Coupler - Approximate

Height - Ground to Cab
8.58 ft
Height - Ground Clearance
1.08 ft
Length - Wheel Base
7.08 ft
Length - Overall with Bucket
18.25 ft
Reach - Bucket at 45°
3.42 ft
Dig Depth
5.7 in
Clearance - Bucket at 45°
9.33 ft
Clearance - Level Bucket
10.33 ft
Height - Bucket Pin
11 ft
Departure Angle
33°
Length - Overall with Forks
19.92 ft
Reach - Ground
2.83 ft
Reach - Level Arm
4.33 ft
Fork Dig Depth
6.4 in
Clearance - Level Arm
4.42 ft
Clearance - Full Lift
10.25 ft
Fork Reach at Full Lift
1.5 ft
Turning Radius - Over Bucket
14.67 ft
Turning Radius - Inside Tire
6.67 ft
Width - Bucket
6.75 ft
Width - Tread Center
5.08 ft
Width - Over Tires
6.5 ft
Articulation Angle
39°
Dump Angle at Full Lift
45°
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)

Dimensions - With SSL Coupler - Approximate

Height - Ground to Cab
8.58 ft
Height - Ground Clearance
1.08 ft
Length - Wheel Base
7.08 ft
Length - Overall with Bucket
18.75 ft
Reach - Bucket at 45°
3.92 ft
Dig Depth
6 in
Clearance - Bucket at 45°
9.17 ft
Clearance - Level Bucket
10.33 ft
Height - Bucket Pin
10.5 ft
Departure Angle
33°
Length - Overall with Forks
20 ft
Reach - Ground
2.92 ft
Reach - Level Arm
4.75 ft
Fork Dig Depth
0.8 in
Clearance - Level Arm
4.92 ft
Clearance - Full Lift
10.75 ft
Fork Reach at Full Lift
1.92 ft
Turning Radius - Over Bucket
14.75 ft
Turning Radius - Inside Tire
6.67 ft
Width - Bucket
6.75 ft
Width - Tread Center
5.08 ft
Width - Over Tires
6.5 ft
Articulation Angle
39°
Dump Angle at Full Lift
45°
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)

Operating Specifications - ISO Coupler

Tire Size
400/70 R20
Operating Weight
14299 lb
Rated Bucket Capacity
1.5 yd³
Breakout Force - Bucket
12337 lbf
Rated Operating Load at Full Turn - Bucket
4396 lb
Straight Tipping Load - Bucket
10408 lb
Full Turn Static Tipping Load - Bucket
8789 lb
Rack Back - Transport Position
51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
5719 lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).

Operating Specifications - SSL Coupler

Tire Size
400/70 R20
Operating Weight
14402 lb
Rated Bucket Capacity
1.5 yd³
Breakout Force - Bucket
10215 lbf
Rated Operating Load at Full Turn - Bucket
4385 lb
Straight Tipping Load - Bucket
10399 lb
Full Turn Static Tipping Load - Bucket
8766 lb
Rack Back - Transport Position
51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)
5336 lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).

Maximum Material Densities - General Purpose Bucket

Rated Capacity
1.4 yd³
Dump Height
110 in
Maximum Material Density
2914 lb/yd³
Bucket Width
81 in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Multi Purpose Bucket

Rated Capacity
1.2 yd³
Dump Height
110 in
Maximum Material Density
4060 lb/yd³
Bucket Width
81 in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Light Material Bucket

Rated Capacity
2 yd³
Dump Height
111 in
Maximum Material Density
2771 lb/yd³
Bucket Width
81 in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Standard Equipment

  • Loader
    • Return to dig work tool positioner
    • Adjustable implement modulation
  • Transmission/hydraulics
    • Adjustable speed control (creeper control)
    • Rimpull control
    • Electronic throttle lock
    • Adjustable Hystat response settings
    • Ride control
    • 18° frame oscillation, 78° articulation
    • Transmission, 35 km/h (21.7 mph) with secondary steering and heavy duty axles
    • Transmission inching function
    • Hydrostatic drive
    • Work tool quick coupler
    • Proportional auxiliary hydraulic circuit
    • Loader arm float function
    • Connect under pressure hydraulic quick connector
    • Parallel lift Z-bar loader
    • Demand based cooling fan
  • Engine
    • Precleaner for engine air filter
    • Cat C3.3B DIT EU Stage V/U.S. EPA Tier 4 Final engine
    • Two stage air cleaner with visual indicator
    • Cat extended life coolant
    • Lockable engine compartments
    • Easy quick release fuel filter/water separator
    • Engine oil drain valve (non spill eco drain)
    • Closed circuit breather
    • Eco Mode
  • Electrical
    • Magnetic rotating beacon
    • Work tool wiring harness
    • Working lights, two front and two rear
    • Cab mounted fuse panel
    • Battery disconnect switch
    • Heavy duty battery, 12V
    • Engine cold starter aid
    • Alternator 90 amp
    • Service point connector for electronic diagnostics (Electronic Technician™)
    • Reverse alarm
  • General
    • E-coat paint primer
    • Pressure test points
    • Recovery hitch and pin
    • Scheduled Oil Sampling S·O·SSM ports
  • Operator Environment
    • Adjustable steering column
    • Air conditioning
    • Heater with window, side and feet vents
    • Heated rear window
    • Radio/CD/MP3/WMA/AUX
    • Two doors with sliding window
    • Wiper/washer, front and rear
    • Cabin light
    • Pressurized cab
    • Cup holder
    • Sun visor
    • ROPS and FOPS certified canopy/cab
    • Adjustable arm rest
    • Retractable seat belt
    • Auxiliary power sockets
    • Coat hook
    • On board digital display cluster
    • Sound suppression
    • Multifunction joystick with direction control
    • Two external knock back mirrors
    • Warning indicators for major systems
    • Easy clean cab floor
    • Lockable storage box
    • Adjustable internal mirror
    • Operator station on isolation mounts
    • Digital service hour meter
    • Gauges: fuel hydraulic temp, coolant temp, speedometer
    • Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
    • Suspended brake/accelerator pedals
    • Cloth, electric air suspension, arm/head rest, lumbar support, heated back seat

Attachments

  • Transmission/hydraulics
    • 100% differential lock on both axles, selectable on the move
  • Loader
    • High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
    • Load check valves
  • Engine
    • Engine block heater 120V
  • Electrical
    • Machine Security System (MSS)
  • General
    • Custom color
    • Tire options
  • Fluids
    • Cat extended life coolant (–50° C/–58° F)
  • Operator Environment
    • Rear blind
  • Work Tools
    • For all work tools and standard/high flow options (consult your Cat dealer)
